Yale G712 Latch 3 Deadbolts Double Spindle Multipoint Door Lock

This part is discontinued and is no longer available.

However, part: LM635 is a potential alternative. This is a similar product but outer deadbolt keeps will need to be repositioned.

Operation: Double Spindle

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the locking points.

3. Lock the system by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

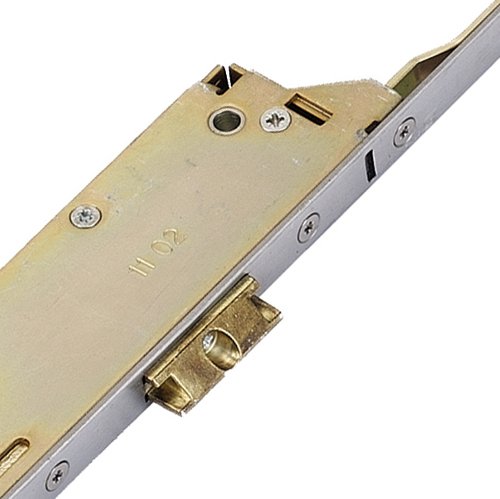

Latch Reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
