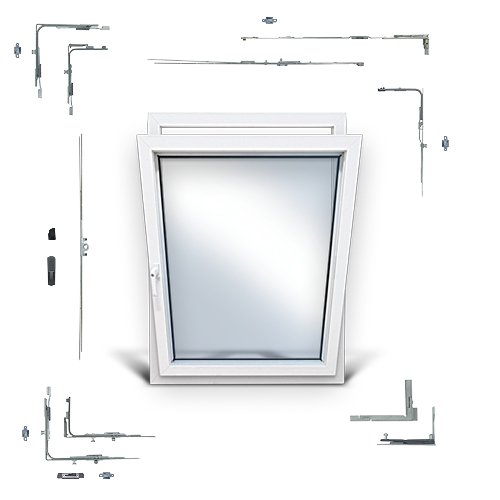

Titan is the latest tilt before turn system from Siegenia for use on UPVC, timber and aluminium windows. These complete sets have been designed for new installations or replacing old TBT systems fitted to sash windows with a standard 16mm eurogroove channel.
These models are to suit sash rebates between 260-600mm high and 380-680mm wide, with variants to suit left or right hung windows and 9mm or 13mm eurogroove axis with concealed hinge fixing.
Drive gears are available with 7mm or 15mm backsets. Check the backset of the old drive gear if you're replacing an existing system.
These systems are supplied as complete sets to suit particular window requirements. If you are unsure this is the correct set for you, check your sash dimensions are between that of the sash rebate width and height. Further details can also be found in the Specifications.
To view options of all the different sash rebate sets available click here
A window handle is not included in the set, see related products for options of recommended handles and the various finishes available.
Handing information is as follows:
When viewed from the inside, the handing is whichever side the HINGES are on. therefore:
looking at window from inside. handle on left hinges on right = RIGHT HANDED
looking at window from inside. handle on right hinges on left = Left HANDED
