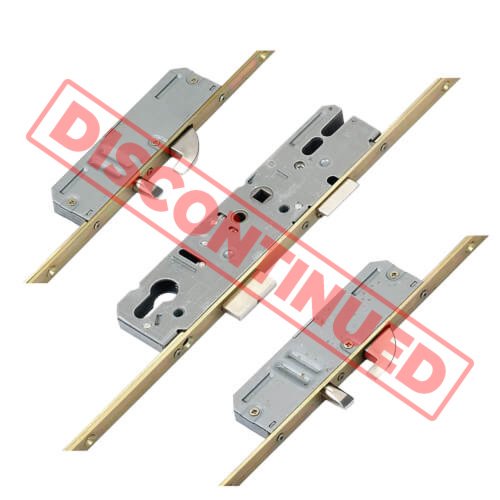

KFV Latch Deadbolt 2 Hooks 2 Pins Lift Lever Multipoint Door Lock - Shootbolt Compatible

This part is discontinued and is no longer available.

However, part: AS435035 is a potential alternative. This replacement features pins instead of hooks and anti lift pins. They are in the same positions but keeps will need adjusting to accept the pin positions.

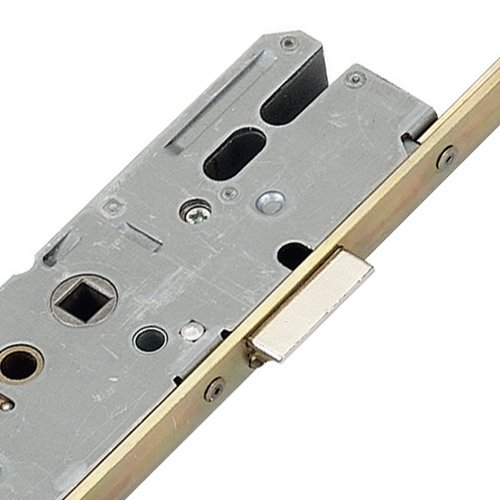

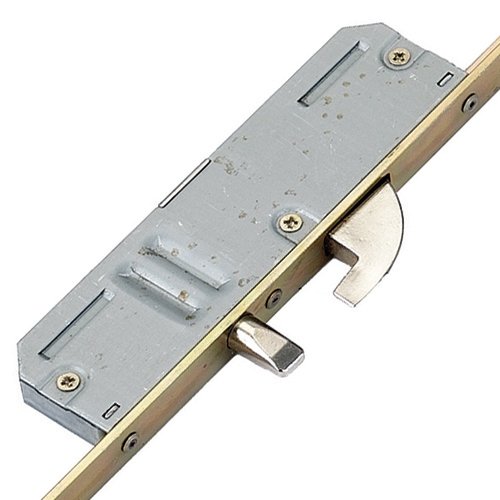

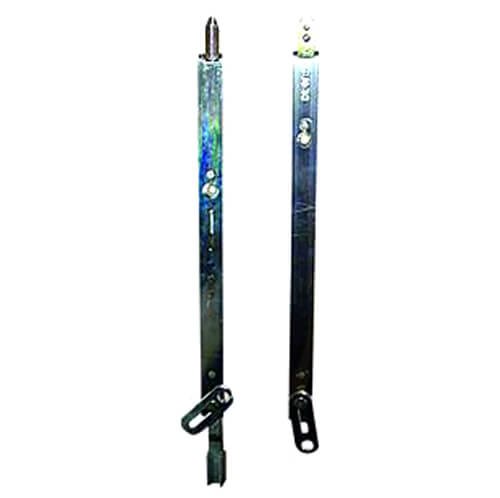

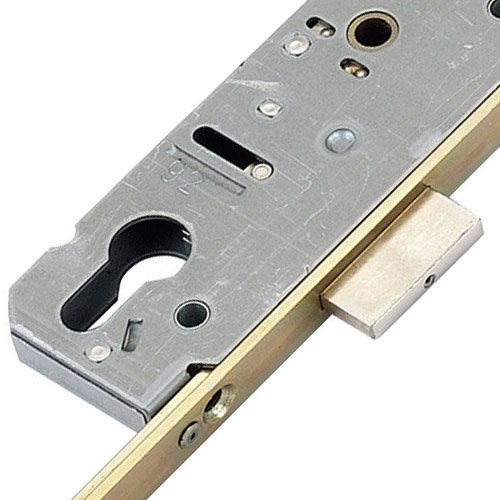

KFV Latch Deadbolt 2 pin bolts, 2 hook lock with a lift lever function and serrations for attaching shootbolts at the top and bottom of the door.

KFV are one of the few brands that use rivets to attach locking points to the strip for more security. Shootbolts sold separately.

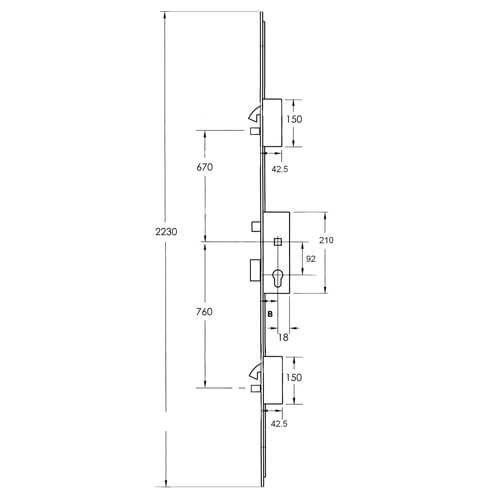

Backset: 35mm and 45mm.

Centres: 92mm.

Operation: Lift Lever.

Latch reversal: Depending on the date of manufacture either- Push in the latch and undo the screw in the back of the lock case, remove the latch, reverse and reinsert. Push in the latch and undo the screw in the side of the lock case to remove the latch, reverse and reinsert.
