IG Doors Multipoint Genuine Gearbox - Lift Lever or Split Spindle

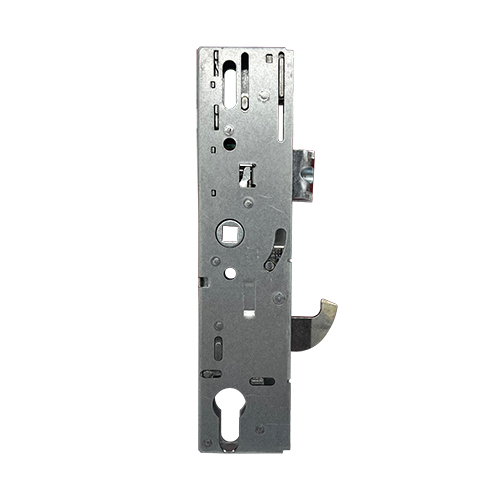

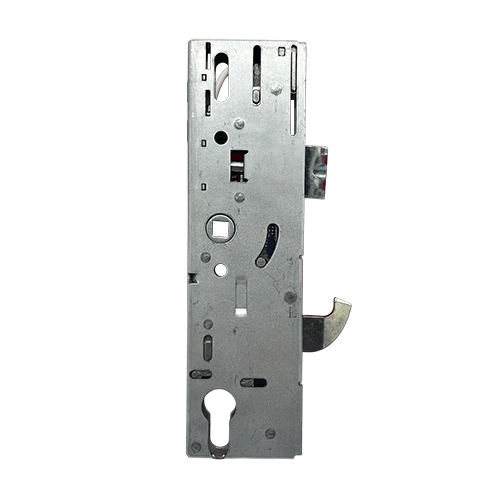

This IG Doors gearbox is available in 35mm and 45mm backsets. The lock features a latch and hook bolt.

n

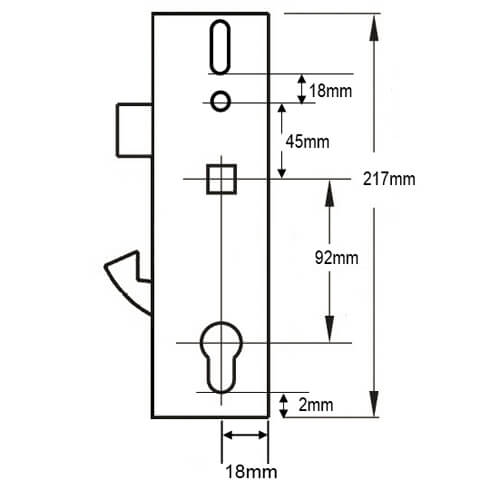

It measures 217mm high by backset +18mm wide. The latch is 28mm high and there is 52mm from the bottom of the latch to the top of the hook. The hook measures 28mm high.

n

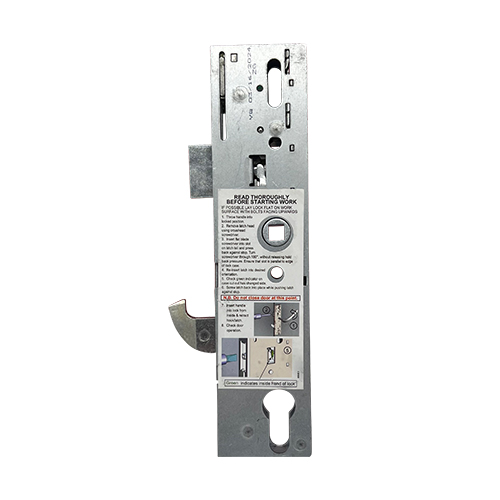

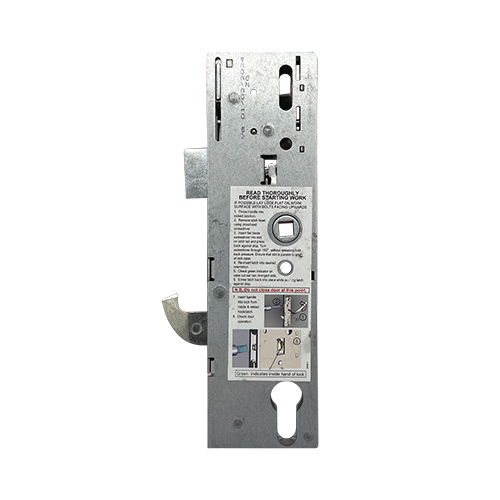

It's worth noting that the latch reversal instructions are printed on a sticker on the side of the gearbox.

n

Operation: Lift lever or split spindle

n

Latch reversal: Push up the serrated button on the side of the case, remove the latch, reverse, and reinsert.

n

To lock the door

n

1. On closing the door, the latch is automatically engaged.

n

2. Lift the handle up to engage the additional locking points.

n

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

n

To unlock the door

n

1. Unlock the system by turning the key.

n

2. Push the handle downwards to disengage the locking points.

n

3. A further quarter turn of the key will retract the latch.
