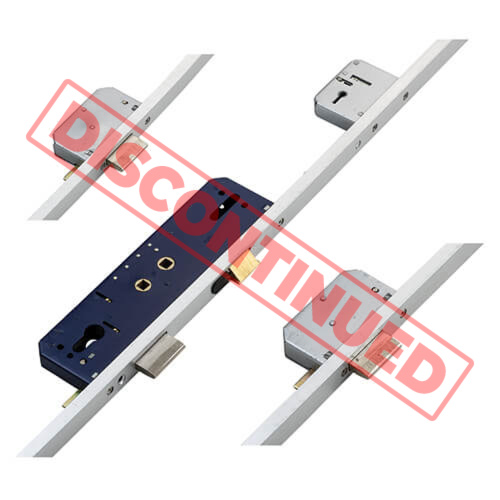

Gridlock C Series Latch 3 Deadbolts Single Spindle Multipoint Door Lock - Holiday Lock Version

This part is discontinued and is no longer available.

However, part: UM3D5085 is a potential alternative. Please note that this alternative has a 50mm backset and 85mm centres, some alterations will have to be made to fit but this is the closest alternative available.

Operation: Double Spindle

To lock the door

n

1. On closing the door, the latch is automatically engaged.

n

2. Lift the handle up to engage the locking points.

n

3. Lock the system by turning the key.

n

To unlock the door

n

1. Unlock the system by turning the key.

n

2. Push the handle downwards to disengage the locking points.

n

3. A further quarter turn of the key will retract the latch.

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
