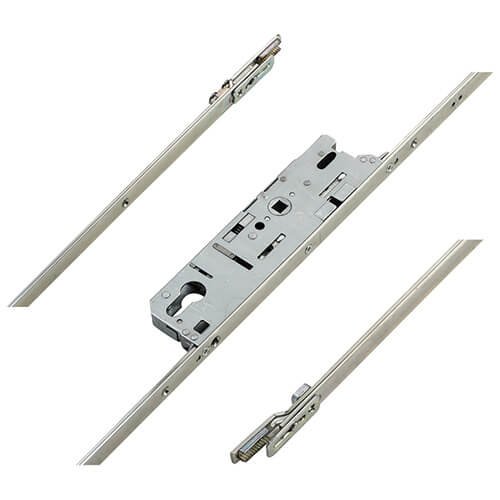

Fuhr Lift Lever Passive Lock

This Fuhr Passive multipoint door lock features no locking points and is suitable for the passive door on a pair of French doors.

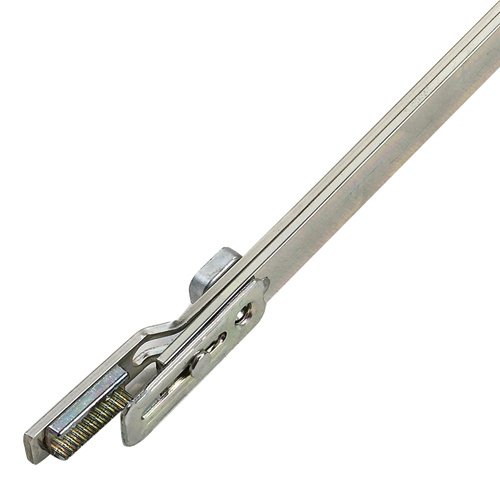

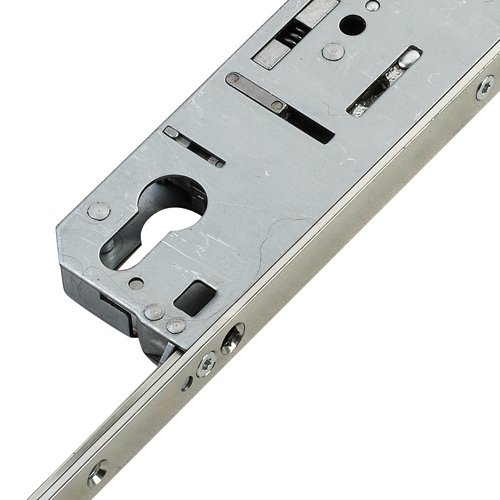

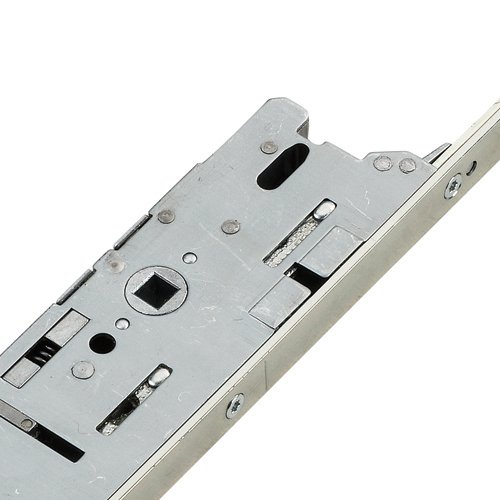

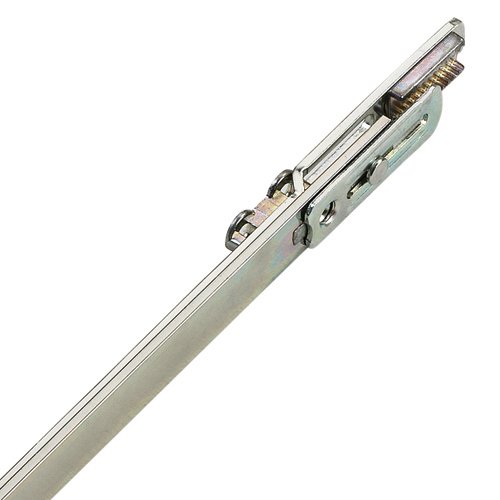

Fuhr passive door locks suit the passive leaf on a pair of hinged, French doors. These locks are non handed and can be used on either a left or right hand door. They consist of a central lock, without latch or deadbolt that connect into shoot bolts, which hold the passive door leaf in place, once the handle has been lifted. They work using a standard lift lever operation.

Fuhr passive locks were previously referred to as "slave" door locks and are available in different versions, a main lock, such as this one, and an espag with a separate locking handle. This handle is part DPMG01S.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for Fuhr Passive multipoint door locks, including keeps, spindles, handles and accessories.

You may find this lock used as an UPVC door lock, an aluminium door lock, a timber multipoint door lock or a composite door lock .
