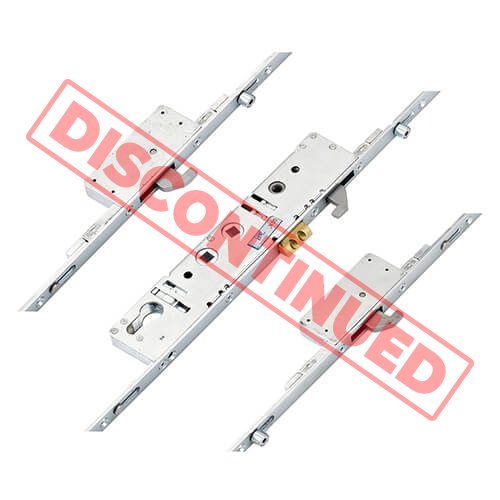

This part is discontinued and is no longer available.
However, part: MA80010SA is a potential alternative. The locking points on the replacement Millenco MA80010SA are a very close match for locking point positions. We'd recommend using a full length keep to match the replacement lock.

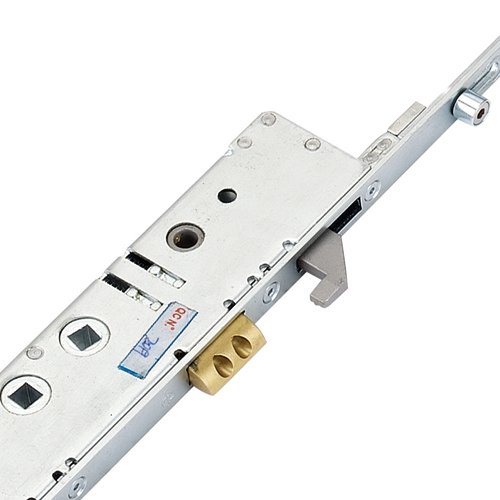

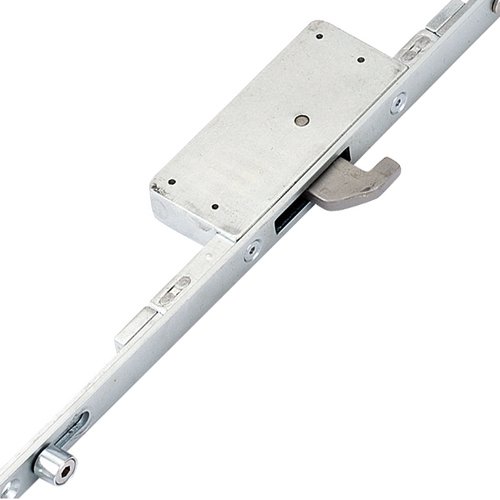

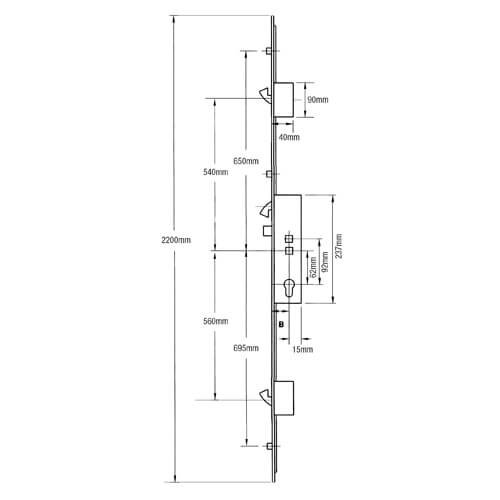

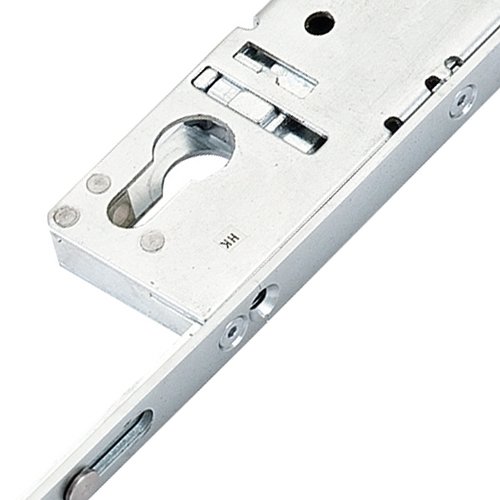

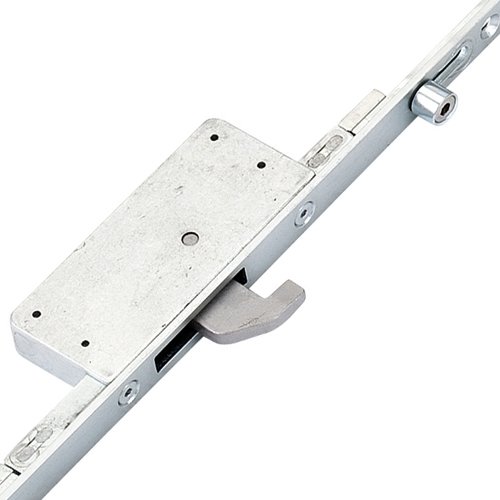

A unique multipoint lock with a hook immediately above the latch. Full length keeps are required for this lock because of the unique set of locking points.
Operation: Double Spindle
To lock the door
1. On closing the door, the latch is automatically engaged.
2. Lift the handle up to engage the locking points.
3. Lock the system by turning the key.
To unlock the door
1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points.
3. A further quarter turn of the key will retract the latch.
Latch Reversal: Undo the screws in the latch to remove. Reverse, reinsert and replace screws.
You may find this lock used as an UPVC door lock or an aluminium door lock.
