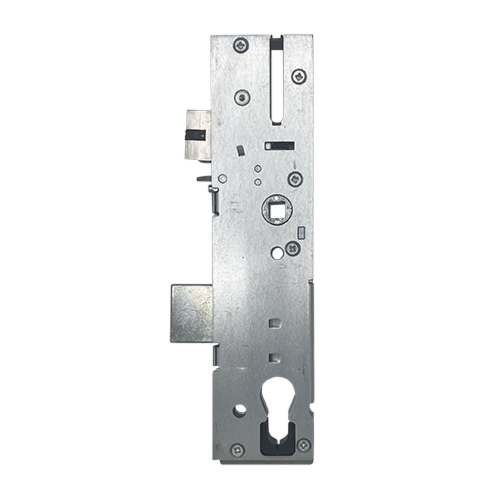

ERA SureFire multipoint gearboxes are a different design to the regular ERA, with the overall length measuring 213.6mm. The SureFire gearbox cannot be interchanged with other ERA multipoint door locks.

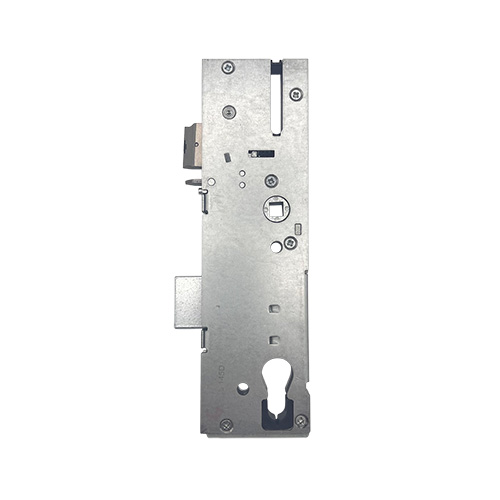

ERA SureFire multipoint gearboxes are available in 35mm or 45mm backsets and are only available with a latch and hook bolt.
ERA multipoint door lock gearboxes are very distinctive, with a square design and no corner cut-outs. The SureFire gearbox is a different design to the regular ERA, with the overall length measuring 213.6mm.
The SureFire gearbox cannot be interchanged with other ERA multipoint door locks.
When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.
Shutting the door engages the trigger and fires all five locking points into the keeps and then using the key the centre deadbolt can be thrown. To release, simply turn the key
Surefire cases cannot be interchanged with other ERA gearboxes.
We stock a range of associated products for ERA Surefire gearboxes, including multipoint door locks, keeps, spindles, handles and accessories.
To lock the door
1. On closing the door, the latch and locking points are automatically engaged as the triggers on the door connect with the keeps on the frame.
2. Turn the key to deadlock the mechanism.
To unlock the door
1. Turn the key to unlock the mechanism.
2. If you have a lever, push the lever down to retract the locking points. Alternatively, a further quarter turn of the key will retract the latch to open the door.
