Alpro EL900 ANSI Electric Release

Name: Alpro EL900 ANSI Electric Release - Prodoor Hardware
SKU: EL901M-SET
Availability: InStock

★★★★★

0 customer reviews

operation

operating-voltage

Clear

Order Code: Select Options

Did you like this product? Ask us a question.

Have a question? Ask the desk 07368 800245

Low prices
Trade and retail prices on the same product.
Guaranteed fitment
The size and finish listed are the part we send.
In-house experts
We know the hardware we sell.
Easy returns
Read the returns policy

Categories: Access Control, Alpro, Electric Releases, Locking Devices, Locks and Security, Manufacturer, Shop Front Hardware

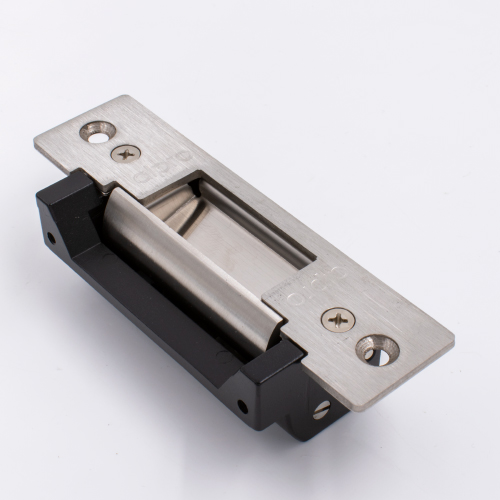

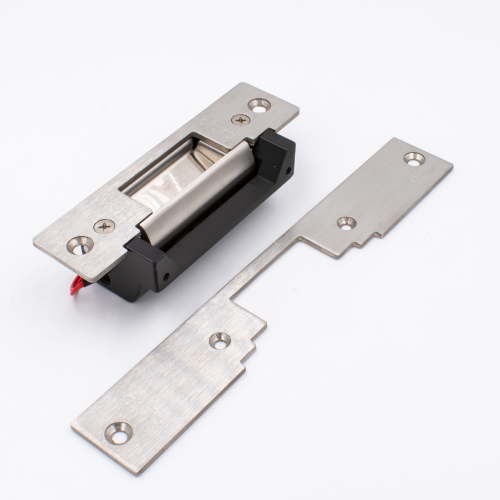

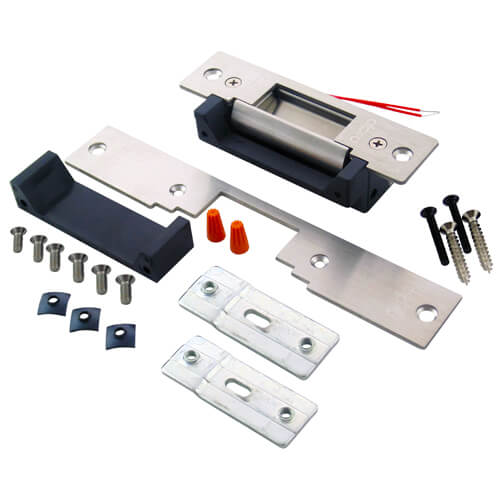

The EL900 is supplied with both long (200mm separate) and short faceplates (124mm fitted) and a 25mm extension lip and while available in both fail safe and fail secure. These releases can be easily converted on site. Simply select the voltage required and whether monitoring is required or not. Compatible with Aluminium and Timber frames.

Type: Mortice.
Style: ANSI.
Jaw: None adjustable
Jaw Dimensions:
Dimensions: (H) 124mm x (W) 42mm x (D) 31mm.
Field Reversible: Fail safe monitored.
Current Consumption: 300mA at 12v DC, 150mA at 24v DC.
Holding Force: 1380kg.
Latch Accommodation: 13mm (inc. 3mm air gap).
