AGB Latch Deadbolt 2 Hooks 3 Rollers Lift Lever Multipoint Door Lock - Option 2

This part is discontinued and is no longer available.

However, part: V-MPLSS35 is a potential alternative. We'd recommend a VERSA V-MPLSS35 to replace this lock. There isn't a full lock that is a direct swap, but the VERSA lock comes with keeps and is adjustable to suit the original door routing.

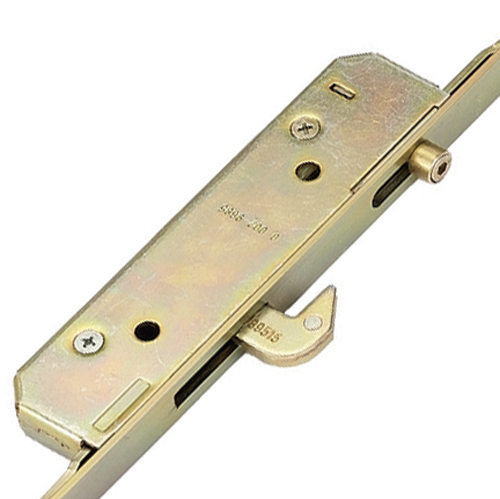

AGB locks are manufactured in Italy. They were historically available in a number of different configurations but only the Poseidon lock is still available. The AGB Poseidon lock features a unique hook and deadbolt arrangement on the outer locking points. Designed to look like a trident, each hook throws in the opposite direction to the other with a deadbolt separating them.rn

rnAGB UPVC door locks are easy to identify from the logo stamped on the faceplate or the unique Poseidon locking arrangement. These locks are only available with a 35mm backset and a 16mm faceplate. The operation is lift lever with a single spindle.

Operation: Lift Lever

To lock the door

1. Lift the handle upwards to engage the locking points.

2. Lock the locking points and main deadbolt (if present) by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points and retract the latch.

We stock a range of associated products for AGB multipoint door locks, including keeps, spindles, handles and accessories.

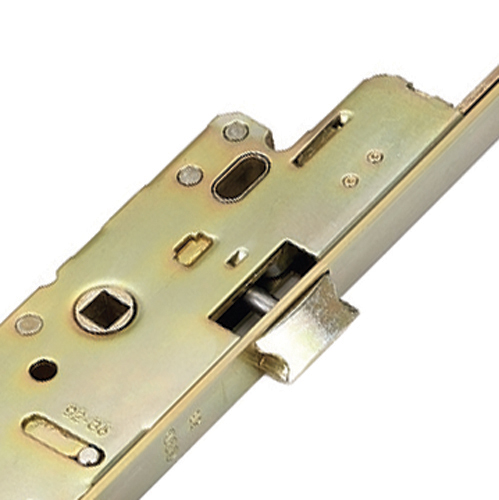

Latch Reversal: Push in the latch and a screw will appear in the back of the lockcase. Undo the screw to remove the latch. Reverse, reinsert, and replace the screw.

You may find this lock used as an UPVC door lock or an aluminium door lock.
